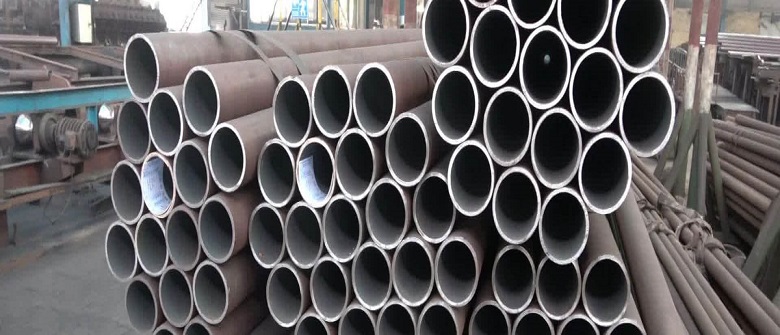

ASTM A335 P12 Seamless Pipe

ASTM A335 Grade P12 Seamless Pipe, Alloy Steel Gr.P12 EFW Pipes, SA335 P12 Material At Best Price.

Bhawal Steel Agency is a steel manufacturing and supplying company that deals with various products, including ASTM P12 seamless pipe. We are working to build a substantial collection of steel products at reasonable costs and long-lasting lives.

Grade ASTM A335 P12 seamless pipe is available in various sizes and thicknesses; thickness is available from 2.77-100 mm, whereas size ranges from 50.8-860 mm. ASTM P12 ferric alloy steel is designed for a high-temperature environment. P12 pipe may be used for bending and flanging operations, and for fusion welding purposes P2 and P12 are eligible through coarse-grain melting practices. The material of P12 can be created following the chemical composition and hardness requirements. The inspection of the pipe of each product is always through hydrostatic tests and all other destructive and non-destructive tests to examine and construct suitable quality of products. The breadth of the individual procedures limits the range of pipe sizes that each approach may evaluate. Different mechanical tests are applied to the P11 pipes to test their proper functionality: longitudinal test, transverse test, flattening test, hardness test, micro and macro test, etc.

The chemical composition in P11 seamless pipes is carbon 0.05-0.15%, manganese from 0.30-0.60%, silicon up to 1%, chromium up to 1.5%, and molybdenum and silicon like other small elements for the chemical balance.

The most common applications used in P12 grade are refineries, petrochemical plants, hydrocrackers, oil and gas field services, power generation, chemical industries, and power plant industries, like others.

Specification Of ASTM A335 Grade P12 Seamless Pipe

Material	Size (in mm)	Sch. & Swg.	Specification
ASTM A335 P12 Seamless Pipes	15 NB to 300 NB	Sch. 40s To Sch. XXs (heavier on request)	ASTM A 335, ASME SA 335 Seamless



Application	Seamless Ferritic Alloy-Steel Pipes for High-Temperature Service
Specialized in	Large Diameter ASTM A335 P12 Pipes
Size	1/2” NB to 36” NB
available in Form of	Round, Square, Rectangular, Hydraulic Etc.
Craft	Cold rolled and Cold drawn
Schedules	SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules
Tolerance	Cold drawn pipes: +/-0.1mm Cold rolled pipe: +/-0.05mm
Type	Seamless / ERW / Welded / Fabricated
Standard	ASTM A335 P12, SA335 P12 (with IBR Test Certificate)
Length	Standard Double & In Cut length also.
End	Plain End, Beveled End, Treaded
Additional Testing	NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc.
Thickness	3-12mm

ASTM A335 Grade P12 welded pipe Wall Thickness

ASTM A450	Hot rolled	Outside Diameter, mm	Tolerance, %
		OD≤101.6, WT≤2.4	+40/-0
		OD≤101.6, 2.4＜WT≤3.8	+35/-0
		OD≤101.6, 3.8＜WT≤4.6	+33/-0
		OD≤101.6, WT>4.6	+28/-0
		OD>101.6, 2.4＜WT≤3.8	+35/-0
		OD>101.6, 3.8＜WT≤4.6	+33/-0
		OD>101.6, WT>4.6	+28/-0
	Cold Drawn	Outside Diameter, mm	Tolerance, %
		OD≤38.1	+20/-0
		OD>38.1	+22/-0
ASTM A530	NPS	Outside Diameter, inch	Tolerance, %
		1/8≤OD≤2-1/2	+20.0/-12.5
		3≤OD≤18, WT/OD≤5%	+22.5/-12.5
		3≤OD≤18, WT/OD>5%	+15.0/-12.5
		OD≥20, WT/OD≤5%	+22.5/-12.5
		OD≥20, WT/OD>5%	+15.0/-12.5

SA335 P12 Material Thermal Expansion

Breed	Specification		Grade steel / steel	Implementation of standards
	OD mm	Wall thickness mm
Low and medium pressure boiler pipe	48-1200	5-30	10 #	GB3087
			20 #
High Pressure Boiler Tube	48-457	3.91-57	20G	GB5310
			20MnG
			25MnG
			15MoG
			20MoG
			15CrMoG
			12Cr1MoVG/13CrMo44/13CrMo4-5
			ST35.8/ST45.8	DIN17175
			SA106A/B/C	ASME SA106 ASME SA210 ASME SA213 ASME SA335
			SA210A/B/C
			T2/P2
			T11/P11
			T12/P12
			T22/P22
			T91/P91
Nuclear power tube	48-711	3.91-57	20 control Cr/P22/WB36CN1/A106B/P11	GB5310  ASTM A106  ASTM A335

P12 Alloy Steel Seamless Pipe Weight chart

Size NPS	Pipe O.D.	Wall Thickness	Pipe I.D.	Weight per Foot	Standard to XXHY	Schedule Pipe #	Section Modulus	Gallon Capacity Per Linear Foot
1/2	0.84	0.109	0.622	0.85	STD	40	.0407	.0158
		0.147	0.546	1.09	XHY	80	.0478	.0122
		0.188	0.464	1.31		160	.0528	.0088
		0.294	0.252	1.72	XXHY		.0577	.0026
3/4	1.05	0.113	0.824	1.13	STD	40	.0705	.0277
		0.154	0.742	1.48	XHY	80	.0853	.0225
		0.219	0.612	1.95		160	.1006	.0153
		0.308	0.434	2.44	XXHY		.1103	.0077
1	1.315	0.133	1.049	1.68	STD	40	.1328	.0449
		0.179	0.957	2.17	XHY	80	.1606	.0374
		0.250	0.815	2.85		160	.1904	.0271
		0.358	0.599	3.66	XXHY		.2136	.0146
1 1/4	1.66	0.140	1.380	2.27	STD	40	.2346	.0777
		0.191	1.278	3.00	XHY	80	.2913	.0666
		0.250	1.160	3.77		160	.3421	.0549
		0.382	0.896	5.22			.4110	.0328
1 1/2	1.90	0.145	1.610	2.72	STD	40	.3262	.1058
		0.200	1.500	3.63	XHY	80	.4118	.0918
		0.281	1.338	4.86		160	.5079	.0730
		0.400	1.100	6.41			.5977	.0494
2	2.375	0.109	2.157	2.64		10	.4205	.1898
		0.154	2.067	3.66	STD	40	.5606	.1743
		0.218	1.939	5.03	XHY	80	.7309	.1534
		0.250	1.875	5.68			.8045	.1434
		0.281	1.813	6.29			.8666	.1344
		0.344	1.687	7.47		160	.9806	.1161
		0.436	1.503	9.04	XXHY		1.1043	.0922
2 1/2	2.875	0.120	2.635	3.53		10	.6870	.2833
		0.203	2.469	5.80	STD.	40	1.0640	.2487
		0.216	2.443	6.14			1.1169	.2435
		0.250	2.375	7.02			1.2468	.2301
		0.276	2.323	7.67	XHY	80	1.3386	.2202
		0.375	2.125	10.02		160	1.6371	.1842
		0.552	1.771	13.71	XXXHY		1.9971	.1280
3	3.50	0.120	3.260	4.34			1.0411	.4336
		0.156	3.188	5.58			1.3122	.4147
		0.172	3.156	6.12			1.4265	.4064
		0.188	3.124	6.66			1.5342	.3984
		0.216	3.068	7.58	STD.	40	1.7241	.3840
		0.250	3.000	8.69			1.9372	.3672
		0.281	2.938	9.67			2.1207	.3521
		0.300	2.900	10.26	XHY	80	2.2253	.3431
		0.438	2.624	14.34		160	2.8774	.2811
		0.600	2.300	18.6	XXHY		3.4243	.2158
3 1/2	4.0	0.120	3.760	4.98		10	1.3776	.5768
		0.226	3.548	9.12	STD.	140	2.3939	.5136
		0.250	3.500	10.02			2.6001	.4998
		0.281	3.438	11.17			2.8562	.4821
		0.318	3.364	12.52	XHY	80	3.1400	.4617
		0.636	2..728	22.87	XXHY		4.8795	.3085
4	4.5	0.120	4.260	5.62		10	1.7612	.7404
		0.156	4.188	7.24			2.2354	.7156
		0.188	4.124	8.67			2.6296	.6942
		0.203	4.094	9.32			2.8173	.6838
		0.219	4.062	10.02			3.0184	.6725
		0.237	4.026	10.80	STD.	40	3.2145	.6613
		0.250	4.000	11.36			3.3611	.6528
		0.281	3.938	12.67		60	3.7021	.6326
		0.312	3.876	13.97			4.0273	.6126
		0.337	3.826	15.00	XHY	80	4.2713	.5972
		0.438	3.624	19.02		120	5.1790	.5361
		0.531	3.438	22.53		160	5.8997	.4822
		0.674	3.152	27.57	XXHY		6.7927	.4054
5	5.563	0.188	5.187	10.80			4.1161	1.0979
		0.219	5.125	12.51			4.7279	1.0716
		0.258	5.047	14.63	STD.	40	5.4500	1.0391
		0.281	5.001	15.87			5.8644	1.0204
		0.312	4.939	17.51			6.4074	.99647
		0.344	4.875	19.19			6.9358	.9696
		0.375	4.813	20.80	XHY	80	7.4300	.9449
		0.500	4.563	27.06		120	9.2534	.8495
		0.625	4.313	32.99		160	10.7976	.7590
		0.750	4.063	38.59	XXHY		12.0954	.6734
6	6.625	0.109	6.407	7.59		5	3.5769	1.6748
		0.134	6.357	9.30		10	4.3475	1.6488
		0.156	6.313	10.79			5.0107	1.6260
		0.188	6.249	12.94			5.9351	1.5937
		0.203	6.219	13.94			6.3804	1.5780
		0.219	6.187	15.00			6.8261	1.5620
		0.250	6.125	17.04			7.6905	1.5306
		0.280	6.065	18.99	STD.	40	8.4958	1.5008
		0.312	6.001	21.06			9.3416	1.4688
		0.344	5.937	23.10			10.111	1.4391
		0.375	5.875	25.05			10.893	1.4082
		0.432	5.761	28.60	XHY	80	12.224	1.3541
		0.500	5.625	32.74			13.711	1.2909
		0.562	5.501	36.43		120	14.9806	1.2346
		0.625	5.375	40.09			16.1821	1.1787
		0.719	5.187	45.39		160	17.8243	1.0977
		0.864	4.897	53.21	XXHY		20.025	.9784
		1.000	4.625	60.13			21.7719	.8727
		1.125	4.375	66.14			23.1237	.7809

A335 gr P12 Welded Pipe Size Chart In Mm

O.D. x Thickness(mm)	O.D x Thickness(mm)	O.D x Thickness(mm)
38.1 x 3.2	57.0 x 4.9	76.2 x 4.0
38.1 x 4.0	57.0 x 6.3	76.2 x 5.0
38.1 x 6.3	57.0 x 7.9	76.2 x 6.3
42.4 x 3.2	60.3 x 3.2	82.5 x 4.5
42.4 x 4.0	60.3 x 3.6	88.9 x 3.2
44.5 x 3.2	60.3 x 5.0	88.9 x 3.6
44.5 x 6.3	63.5 x 3.2	88.9 x 4.0
48.3 x 3.2	63.5 x 3.6	101.6 x 3.6
48.3 x 3.6	63.5 x 4.0	101.6 x 4.5
50.8 x 4.5	63.5 x 6.3	101.6 x 6.3
51.0 x 3.2	63.5 x 7.9	114.3 x 3.6
51.0 x 3.6	70.0 x 3.2	114.3 x 5.0
51.0 x 6.3	70.0 x 3.6	139.7 x 4.0
57.0 x 3.2	70.0 x 6.3	139.7 x 5.0
57.0 x 3.6	76.2 x 3.6	139.7 x 6.3

Equivalent Material Of SA335 Gr P12 Welded Pipe

ASTM	ASME	Equivalent material	JIS G 3458	UNS	BS	DIN	ISO	ABS	NK	LRS
A335 P12	SA335 P12	T12	STPA 22	K11562	3604 P1 620-440	17175 13CrMo44	-	ABS 12	KSTPA 22	Sec 2 1Cr 1/2Mo440
										Sec 3 1Cr 1/2Mo440

SA335 P12 material Chemical Composition Chart

Alloy Steel P12	C	Cr	Mn	Mo	P	S	Si
	0.05 – 0.15	1.00 – 1.50	0.30 – 0.60	0.44 – 0.65	0.025 max	0.025 max	0.50 – 1.00

Mechanical Behaviour of ASTM A335 P12 Grade Pipe

Tensile Strength, MPa	Yield Strength, MPa	Elongation
415 min	205 min	30 min

ASTM	ASME	JIS G 3458	UNS	BS	DIN	ISO	ABS	NK	LRS
A335 P9	SA335 P9	STPA 26	S50400	3604 P1 629-470		2604 II TS38
