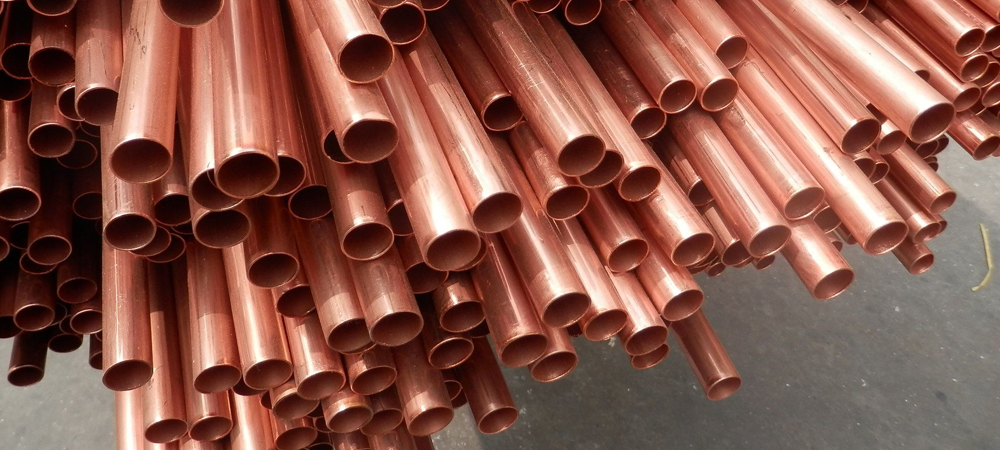

ASTM B466 Pipes, Cu-ni 90 10 Pipe, UNS C70600 Pipe & Tubes Stockist

Bhawal Steel Agency is a manufacturer of high-quality Cu-Ni ASTM B466 UNS C70600 90/10 Pipes & Tubes. Bhawal Steel Agency manufactures this using high-quality raw materials. Bhawal Steel Agency also offers the best quality pipes & tubes as per the clients' requirements, which are vividly used in various application industries such as Cement Industry, Power Industry, Petrochemicals Plants, Oil Refineries, Fertilizers Plants, Sugar Mills, Chemical Plants, Pharmaceuticals etc. Copper-Nickel pipes & tubes are available in different shapes, sizes, grades, specifications, and thicknesses per the client's requirements. We offer products to clients at affordable prices in the market.

Feature Of CuNi ASTM B466 UNS C70600 90/10 Pipes & Tubes: Corrosion resistance, High strength, Durable Fine finish, Excellent flow characteristics

Uses for C70600 90/10 Pipes & Tubes: Automotive: Power Steering Tube, Brake Lines. Industrial: Condense Plates, Condensers, Heat Exchanger Tubes, Weld Torch Tips, Valve Bodies, Evaporator Tubes, Pressure Vessels, Distiller Tubes, Pump Impellers for Oil Refining, Ferrules, Evaporators. Marine areas: Salt Water Pipe, Fittings, Salt Water Piping Systems, Tube Sheet for Salt Water Service, Hot Water Tanks, Salt Water Baffles, Propeller Sleeves, Ship Hulls, Water Hoses

Copper-nickel offers the best corrosion resistance, especially in marine saltwater environments. The copper-nickel alloy chosen for seawater service contains 30 to 10 per cent nickel and up to 70-90% copper. Cu Ni 90/10 also has valuable iron and manganese additions, which are necessary to maintain good corrosion resistance. Copper Nickel 90/10 are used where high temperature is needed and also gives long last service life.

Specification

Standard ASTM / ASME SB 111 / 466
Size 1/2" TO 6' IN OD & NB IN Various SWG & SCH
Outer Diameter 4.00 to 22.00 mm
Wall Thickness Between 0.15mm and 1.50 mm
Grade UNS C 70600 (CU -NI- 90/10), UNS NO. C 10100, 10200, 10300, 10800, 12000, 12200
Type Seamless / ERW / Welded / Fabricated / LSAW Pipes
Form Round, Square, Rectangular, Hydraulic Etc.
End Plain End, Bevelled End, Treaded
Length Single Random, Double Ranidom & Cut Length
Cupro Nickel 90/10 Pipe Specification ASTM B 466 ASME SB 466 / ASTM B 467 ASME SB 467
Cupro Nickel 90/10 Seamless Pipe size 4 to 219mm W. T.: 0.5 to 20mm
Copper Nickel 90/10 Welded Pipe size 5.0 mm – 1219.2 mm
Cupro Nickel 90/10 EFW Pipe size 5.0 mm – 1219.2 mm
Copper Nickel 90/10 Pipe Schedule SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Copper Nickel 90/10 Pipe Form Round, Square, Hollow, Rectangular, Hydraulic, Straight Pipes Etc.
Sizes
  • Copper Nickel 90/10 Round Pipe
    Wall thickness: 0.2mm~120mm
    Outside Diameter: 2mm~910mm
  • Copper Nickel 90/10 Square Pipe
    Wall thickness: 0.2mm~120mm
    Size: 2mm*2mm~1016mm*1016mm
  • Copper Nickel 90/10 Rectangular Pipe
    Wall thickness: 0.2mm~910mm
    Size: 2mm*4mm~1016mm*1219mm
Copper Nickel 90/10 Pipe Hardness 1/16 hard, 1/8 hard, 3/8 hard, 1/4 hard, 1/2hard, full hard, soft etc
Cupro Nickel 90/10 Pipe End Plain End, Beveled End, Treaded.
Copper Nickel 90/10 Pipe Length Single Random, Double Random & Cut Length.
Origin European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material)
Marking All Copper Nickel 90/10 Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Copper Nickel 90/10 Pipe Application
  • Copper Nickel 90/10 straight pipes can be used for oil transportation, brake pipes, water pipes and gas pipes for construction.
  • The Copper Nickel 90/10 Pipe are made of pure electrolysis copper.
  • They are precise in size and smooth on surface. Besides,
  • Copper Nickel 90/10 Pipe are of good heat conductibility.
  • Thus, they are widely used for heat exchangers, radiators, coolers, electro-heat-up pipe, Air conditioner and refrigerators.
Copper Nickel 90/10 Pipe Finish mill, polished, bright, oiled, hair line, brush, mirror, sand blast, or as required.
Our Presence USA, Canada, Australia, UK, Malaysia, Poland, Iran, Italy, Singapore, UAE
Material Test Certificates (MTC) Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2
Test
  • Mechanical Testing Such as Tensile of Area
  • Flattening Test
  • Chemical Analysis – Spectro Analysis
  • Positive Material Identification – PMI Testing
  • Micro and MacroTest
  • Hardness Test
  • Pitting Resistance Test
  • Flaring Test
  • Intergranular Corrosion (IGC) Test
Related Specifications of 90/10 Copper Nickel Pipe
  • CN102
  • C70600
  • 2.0872
  • C70610
  • DEF STAN 02-879 Annex C
  • CuNi10Fe1Mn
  • NES 779
  • BS2870
  • BS2874
  • ASTM B151
  • DEF STAN 02-779
  • NF A51-115
  • CW352H
  • EN 12163
Specialized in Large Diameter Cupro Nickel 90/10 Pipe



Copper Nickel 90/10 Pipe composition & technical information

Joining Technique Suitability
Soldering Excellent
Brazing Excellent
Oxyacetylene Welding Fair
Gas Shielded Arc Welding Excellent
Coated Metal Arc Welding Good
Spot Weld Good
Seam Weld Good
Butt Weld Excellent
Capacity for Being Cold Worked Good
Capacity for Being Hot Formed Good
Machinability Rating 20





Cu(1)

Fe

Pb

Mn

Ni(2)

Zn

Min./Max.

Rem.

1.0-1.8

.05

1.0

9.0-11.0

1.0

Nominal

88.6

1.4

-

-

10.0

-

Equivalent Grades for 90/10 Cupro Nickel Pipe

STANDARD UNS WERKSTOFF NR.
Cupro Nickel 90/10 C70600 2.0872



Chemical of Cu-Ni ASTM B466 UNS C70600 90/10 Pipes

Ni 99.0 min
Fe 0.4 max
C 0.15 max
Mn 0.35 max
Si 0.1 max
Cu 0.25 max
Mg -
Ti -
S 0.01 max


Copper Nickel 90/10 Pipe Types Out diameter Wall thickness Length
NB Sizes (in stock) 1/8” ~ 8” SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 Upto 6 Meters
Copper Nickel 90/10 Seamless Pipe (Custom Sizes) 5.0mm ~ 203.2mm As per requirement Upto 6 Meters
Copper Nickel 90/10 Welded Pipe (in Stock + Custom Sizes) 5.0mm ~ 1219.2mm 1.0 ~ 15.0 mm Upto 6 Meters



Mechanical properties of UNS C70600 90/10 Pipes

Symbol Melting range °C Electrical conductivity at 20°C
m/( Ω . mm2)
Thermal conductivity at 20°C
W/(m . K)
Coefficient of expansion (25 to 300°C)
10-6/K
Elastic modulus Ε kN/mm2
CuNi10Fe1Mn1-C 1105-1140 5.5 59 17 123
CuNi30Fe1Mn1NbSi-C 1170-1240 2.5 29 16 145



Copper Nickel 90/10 Pipe Sizes

Wall Sizes ( O.D.)
.010 1/16" , 1/8" , 3/16"
.020 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012 1/8"
.016 1/8" , 3/16"
.028 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134 1"
.250 3"
.375 3 1/2"



CuNi 90/10 Pipe Pressure Rating

Pipe O.D.
(in.)
Wall Thickness of Tube (inches)
.028 .035 .049 .065 .083 .095 .109 .120
Working Pressure (psig)
1/8 7900 10100
1/4 3700 4800 7000 9500
5/16   3700 5400 7300
3/8   3100 4400 6100
1/2   2300 3200 4400
3/4     2200 3000 4000 4600
1       2200 2900 3400 3900 4300
