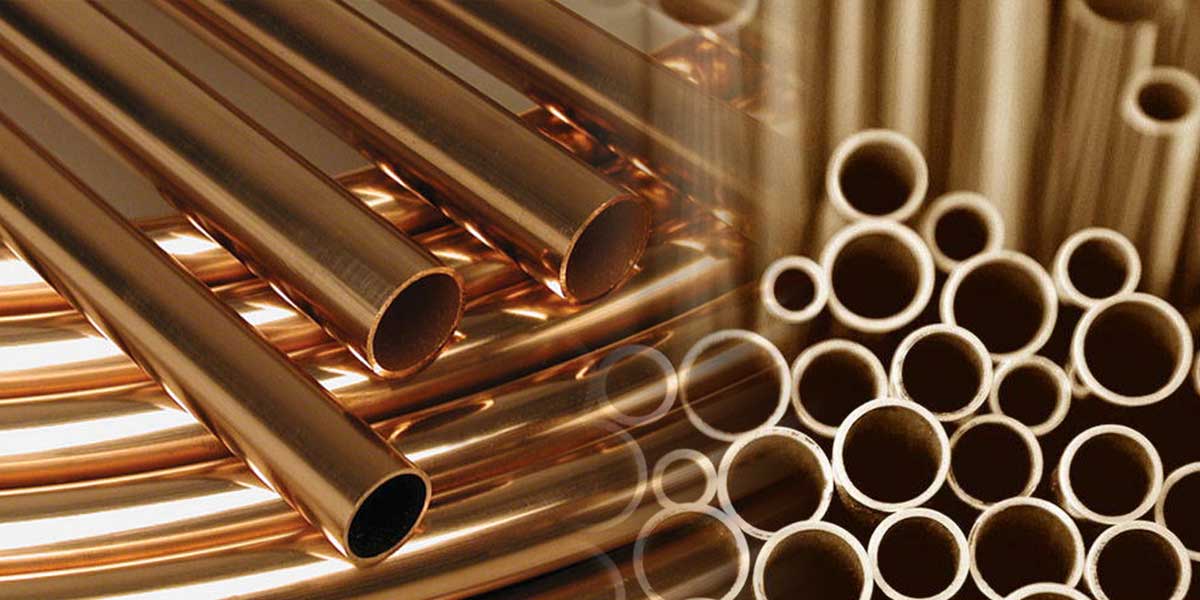

Cu-Ni ASTM B466 UNS C71500 70/30 Pipes & Tubes, Cupro Nickel 70/30 Rectangular Pipes & Tubes, Copper Nickel Seamless Tubes Supplier

Bhawal Steel Agency is a manufacturer & exporter of Copper Nickel pipes & Tubes. It has the heating element of constantan or nickel-chromium alloy within a sheath of copper, cupronickel or stainless steel. Copper Nickel Tubes is used in cryogenic applications, where it is the combination of good ductility retention and thermal conductivity at shallow temperatures. Copper-Nickel Pipes is often used as a single conductor pair of thermocouple conductors such as iron-constantan, copper constantan or nickel-chromium/nickel-aluminium. Copper-nickel pipes are advantageous for low-temperature processing and storage equipment and heat exchangers at cryogenic plants. Copper-nickel Tubes have properties to comprise corrosion resistance, good tensile power, outstanding ductility when annealed, and inherent resistance to macro fouling. Gr 70/30 Cupro Nickel Pipes also have thermal conductivity and expansion characteristics amenable for heat exchangers and condensers, good thermal conductivity and flexibility at cryogenic temperatures and beneficial antimicrobial touch surface properties.

70/30 Cupro Nickel Tubes have high resistance to crevice corrosion, stress corrosion cracking, and hydrogen embrittlement that could be troublesome to other alloy systems. Currently, Copper-nickel welded pipes remain the primary material for silver-plated cutlery. Cu-Ni Seamless Pipes is commonly used for mechanical and electrical equipment, medical equipment, and as material for string instruments. For high-quality cylinder locks and locking systems, zippers, cylinder cores are made from wear-resistant Cu-Ni Welded Pipes.

Copper Nickel 70/30 Pipe Specification

Standard ASTM / ASME SB 111 / 466
Size 1/2" TO 6' IN OD & NB IN Various SWG & SCH
Outer Diameter 4.00 to 22.00 mm
Wall Thickness Between 0.15mm and 1.50 mm
Grade UNS C 71500 (CU -NI- 70/30), UNS NO. C 10100, 10200, 10300, 10800, 12000, 12200
Type Seamless / ERW / Welded / Fabricated / LSAW Pipes
Form Round, Square, Rectangular, Hydraulic Etc.
End Plain End, Bevelled End, Treaded
Length Single Random, Double Ranidom & Cut Length
Specification ASTM B 466 ASME SB 466 / ASTM B 467 ASME SB 467
Seamless Pipe size 4 to 219mm W. T.: 0.5 to 20mm
Welded Pipe size 5.0 mm – 1219.2 mm
EFW Pipe size 5.0 mm – 1219.2 mm
Pipe Schedule SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Pipe Form Round, Square, Hollow, Rectangular, Hydraulic, Straight Pipes Etc.
Sizes
  • Round Pipe
    Wall thickness: 0.2mm~120mm
    Outside Diameter: 2mm~910mm
  • Square Pipe
    Wall thickness: 0.2mm~120mm
    Size: 2mm*2mm~1016mm*1016mm
  • Rectangular Pipe
    Wall thickness: 0.2mm~910mm
    Size: 2mm*4mm~1016mm*1219mm
Pipe Hardness 1/16 hard, 1/8 hard, 3/8 hard, 1/4 hard, 1/2hard, full hard, soft etc
Pipe End Plain End, Beveled End, Treaded.
Pipe Length Single Random, Double Random & Cut Length.
Origin European, Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material)
Marking All Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Pipe Application
  • Thus, they are widely used for heat exchangers, radiators, coolers, electro-heat-up pipe, Air conditioner and refrigerators.
  • They are precise in size and smooth on surface.
  • straight pipes can be used for oil transportation, brake pipes, water pipes and gas pipes for construction.
  • Pipe are of good heat conductibility.
  • The Pipe are made of pure electrolysis copper.
Pipe Finish mill, polished, bright, oiled, hair line, brush, mirror, sand blast, or as required.
Our Presence USA, Canada, Australia, UK, Malaysia, Poland, Iran, Italy, Singapore, UAE
Material Test Certificates (MTC) Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2
Test
  • Intergranular Corrosion (IGC) Test
  • Flattening Test
  • Micro and MacroTest
  • Positive Material Identification – PMI Testing
  • Chemical Analysis – Spectro Analysis
  • Flaring Test
  • Hardness Test
  • Mechanical Testing Such as Tensile of Area
  • Pitting Resistance Test
Specialized in Large Diameter Pipe
Ni 99.0 min
Fe 0.4 max
C 0.15 max
Mn 0.35 max
Si 0.1 max
Cu 0.25 max
Mg -
Ti -
S 0.01 max



  Cu(1) Fe Pb Mn Ni(2) Zn
Min./Max. Rem. .40-1.0 .05 1.0 29.0-33.0 1.0
Nominal 69.5 .50 - - 30.0 -



Mechanical properties of UNS C71500 70/30 Pipes

Symbol Melting range °C Electrical conductivity at 20°C
m/( Ω . mm2)
Thermal conductivity at 20°C
W/(m . K)
Coefficient of expansion (25 to 300°C)
10-6/K
Elastic modulus Ε kN/mm2
CuNi10Fe1Mn1-C 1105-1140 5.5 59 17 123
CuNi30Fe1Mn1NbSi-C 1170-1240 2.5 29 16 145
1Density of both materials is 8.9 kg/dm3



Copper Nickel 70/30 Pipe composition

C71500 Pipe

Joining Technique Suitability
Soldering Excellent
Brazing Excellent
Oxyacetylene Welding Good
Gas Shielded Arc Welding Excellent
Coated Metal Arc Welding Excellent
Spot Weld Excellent
Seam Weld Excellent
Butt Weld Excellent
Capacity for Being Cold Worked Good
Capacity for Being Hot Formed Good
Machinability Rating 20

Cuni 70/30 Pipe Types Out diameter Wall thickness Length
NB Sizes (in stock) 1/8” ~ 8” SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 Upto 6 Meters
Cuni 70/30 Seamless Pipe (Custom Sizes) 5.0mm ~ 203.2mm As per requirement Upto 6 Meters
Cuni 70/30 Welded Pipe (in Stock + Custom Sizes) 5.0mm ~ 1219.2mm 1.0 ~ 15.0 mm Upto 6 Meters

ASME SB111 Welded Cu-Ni Pipes Size

Wall Sizes ( O.D.)
.010 1/16" , 1/8" , 3/16"
.020 1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012 1/8"
.016 1/8" , 3/16"
.028 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035 1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083 1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095 1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134 1"
.250 3"
.375 3 1/2"



Cupro Nickel 70/30 Pipe Pressure Rating

Pipe O.D.
(in.)
Wall Thickness of Tube (inches)
.028 .035 .049 .065 .083 .095 .109 .120
Working Pressure (psig)
1/8 7900 10100
1/4 3700 4800 7000 9500
5/16   3700 5400 7300
3/8   3100 4400 6100
1/2   2300 3200 4400
3/4     2200 3000 4000 4600
1       2200 2900 3400 3900 4300
