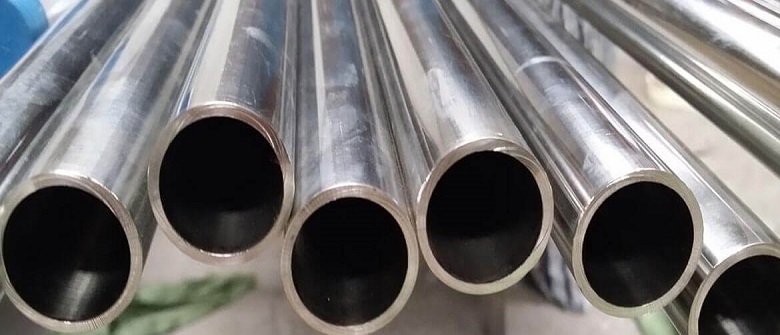

Duplex Steel S32205 pipe

1.4462 Pipes, UNS S32205 Pipes, Duplex Steel S32205 Welded Pipes, Duplex S32205 ERW Pipes

Bhawal Steel Agency is the most prominent manufacturer, supplier and stockist of duplex s32205 pipes. These pipes are manufactured using high quality raw material. These products are highly efficient and effective for industrial and commercial usage. Bhawal Steel Agency is the one of the most famous manufacturers of duplex s32205 pipes. These pipes are highly used for transferring fluids, liquids and gases from one place to another.

Duplex s32205 pipes are made from a mixture of austenitic and ferritic stainless steel. This mixture of these two unique alloys provides excellent ductility and strength to the grade. Duplex s32205 pipes are considered to be ideal for the usage of corrosive environments. The combination of austenitic and ferritic combination is highly durable and hence these pipes are used for transmitting dangerous liquids and gases.

Duplex s32205 pipes resist oxidation and reduction. It provides great service at high as well as low temperature. These pipes are highly applicable in industries like pharmaceutical, pulp and paper making, petrochemical industries, acid making and construction sites.

Bhawal Steel Agency supplies these pipes worldwide with super fast and safe delivery. These pipes are also used for chemical processing industries for transferring waste as well as the byproduct.

Duplex s32205 grades are more durable than other grades. It has great welding and forming properties. These pipes are thoroughly made by using high quality grades. The chemical composition of duplex s32205 pipes includes high amounts of nickel, chromium and carbon. The grade also includes silicon, manganese, phosphorus, and other strong elements. The minimum tensile strength of these pipes is 116000 psi (800 Mpa) whereas the yield strength of these pipes is 80000 psi (550 mpa).

Duplex s32205 pipes are commonly used for high temperature application because of its strength and ductility. Bhawal Steel Agency makes sure that these pipes are thoroughly tested and certified.

Specification Duplex Steel S32205 Pipe

Standard	ASTM A790 / ASME SA790 UNS S31803, S32205, S32550, S32750, S32760
Materials	ASTM A815 – UNS S32205
Size	1/2"NB TO 12 "NB IN
Seamless Pipes & Tubes Sizes	1/2” NB - 8” NB
Welded Pipes & Tubes Sizes	6” NB - 24” NB
Thickness	0.5-45mm
Outer Diameter	6.0-630mm
Dimensions	OD(6.0-630)*WT(0.5-45)mm
Schedule	SCH20, SCH30, SCH40, STD, SCH80
Type	Welded / Fabricated / Seamless
Length	Single Random, Double Random & Cut Length.



STANDARD	WERKSTOFF NR.	UNS
Duplex 2205	1.4462	S32205



Chemical Composition of S32205

Ni	Cr	Mo	Mn	Si	C	N	S	P	Fe
MIN	4.5	22.0	3.0	-	-	-	0.14	-	-	-
MAX	6.5	23.0	3.5	2.0	1.0	0.03	0.2	0.02	0.03	Balance



Dimensional Tolerance Duplex Steel Pipe

Nominal pipe size up to 4 = ± 0.79 mm | 5 thru 8 = + 1.58 mm / - 0.79 mm 10 thru 18 = + 2.37 mm / - 0.79 mm | 20 thru 24 = + 3.18 mm / - 0.79 mm
Wall Thickness All Diameters = - 12.5% + tolerance not specified	Length + 6.40 mm / - 0 mm	Weight Weight = + 10% / - 1.5%



Duplex Steel UNS S32205 Pipes Mechanical Properties

S32205	Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
	7.8 g/cm3	1350 °C (2460 °F)	Psi – 80000 , MPa – 550	Psi – 116000 , MPa – 800	15 %

Duplex Steel UNS S32205 Pipes Size Chart

Wall	Sizes ( O.D.)
.010	1/16" , 1/8" , 3/16"
.020	1/16" , 1/8" , 3/16" , 1/4" , 5/16" , 3/8"
.012	1/8"
.016	1/8" , 3/16"
.028	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 3/4" , 1" , 1 1/2" , 2"
.035	1/8" , 3/16" , 1/4" , 5/16" , 3/8" , 7/16" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.049	3/16" , 1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/8" , 1 1/4" , 1 1/2" , 1 5/8" , 2" , 2 1/4"
.065	1/4" , 5/16" , 3/8" , 1/2" , 16" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 3/4" , 2" , 2 1/2" , 3"
.083	1/4" , 3/8" , 1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 1 5/8" , 1 7/8" , 2" , 2 1/2" ,3"
.095	1/2" , 5/8" , 1" , 1 1/4" , 1 1/2" , 2"
.109	1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2"
.120	1/2" , 5/8" , 3/4" , 7/8" , 1" , 1 1/4" , 1 1/2" , 2" , 2 1/4" , 2 1/2" , 3"
.125	3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 3 1/4"
.134	1"
.250	3"
.375	3 1/2"



UNS S32205 Duplex Steel Tubes Pressure Rating

Tube O.D. (in.)	Wall Thickness of Tube (inches)
	.028	.035	.049	.065	.083	.095	.109	.120
	Working Pressure (psig)
1/8	7900	10100
1/4	3700	4800	7000	9500
5/16		3700	5400	7300
3/8		3100	4400	6100
1/2		2300	3200	4400
3/4			2200	3000	4000	4600
1				2200	2900	3400	3900	4300
